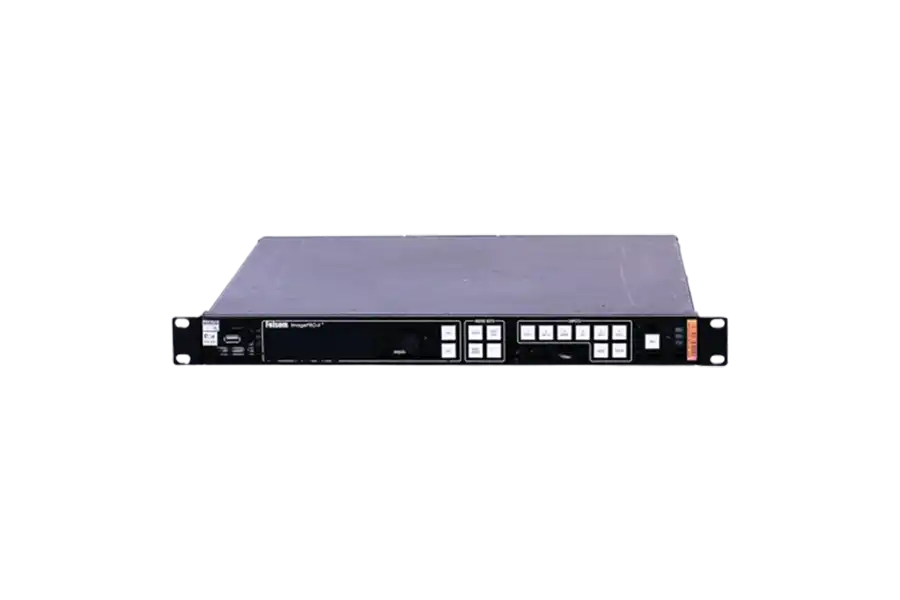

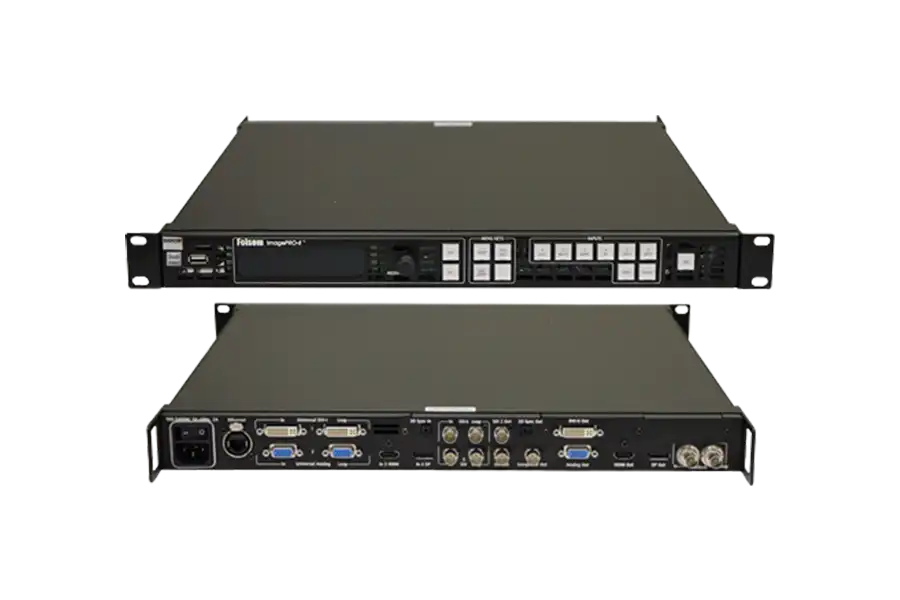

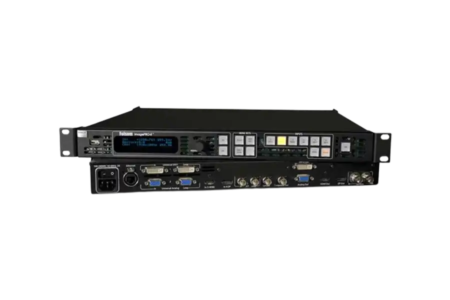

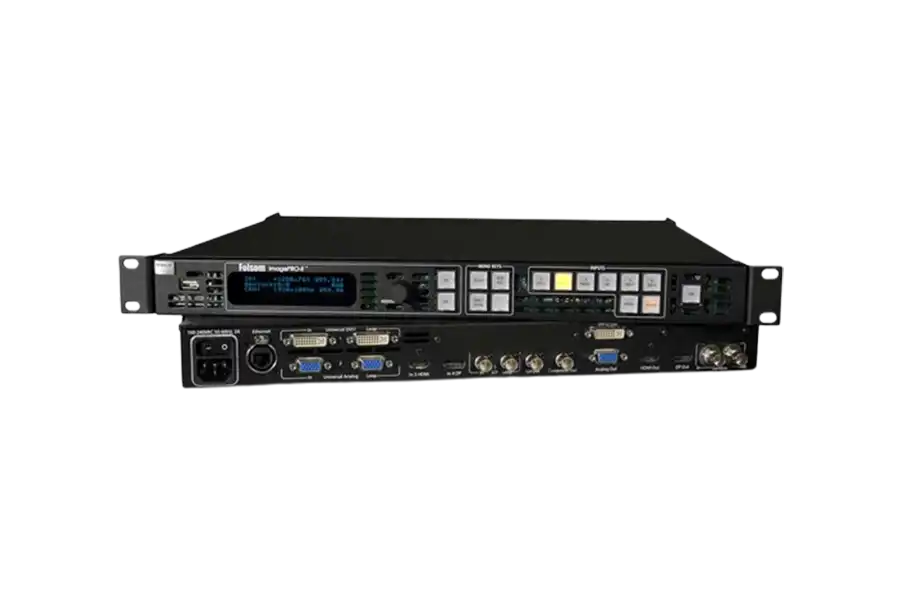

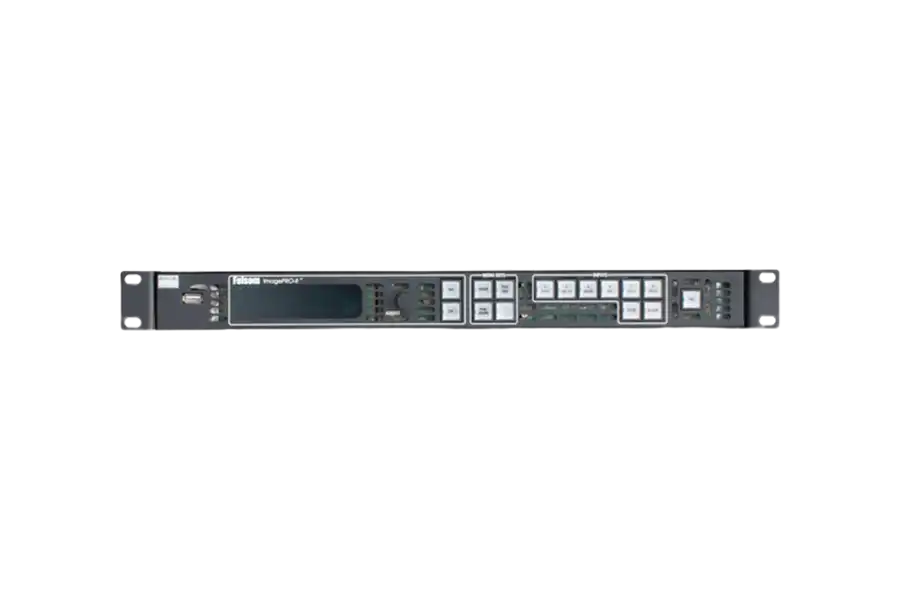

Barco Image Pro II AV Switcher Rental

$995.00

The dual output ImagePRO-II All-in-One Video Scaler, Scan Converter and Switcherfrom Barco can convert any input signal format to any output format.

Barco Image Pro II AV Switcher supports universal analogue, DVI single and dual link, HDMI, DisplayPort, and SD/HD/3G SDI signal formats.

Loop-through outputs are provided for the analogue, DVI and SDI input and genlock signals.

With features like HDCP and EDID management, USB backup and restore, multiple video effects and web page interface, the ImagePRO-II is an advanced and flexible signal processor in the industry.

The price shown is an average, prices vary by location.

Category: Tag:

Description

Product Specifications

Video Inputs DVI-I

Digital formats; all single-link DVI digital formats up to 165 MHz, per DVI 1.0 Specification and all dual-link DVI formats up to 300 MHz; Maximum H Active: 4096 Maximum V Active: 3072
Analog formats: NTSC/PAL composite and Y/C video, SD YPbPR with bi-level sync, HD YPbPr with tri-level sync, RGBHV/RGBS/RGsB computer video with bi-level sync Analog sampling: sources with pixel rates up to 170 MHz are sampled 1:1; sources with pixel rates above 170 MHz are filtered and sampled at 170 MHz, including but not limited to 1920 x 1200p, 2048 x 1080p
Active loop-through output of all input signals, including HDCP and EDID EDID version 1.3 compatible HDCP version 1.4 compatible

VGA HD-15

Format: NTSC/PAL composite and Y/C video SD YPbPr with bi-level sync HD YPbPr with tri-level sync per SMPTE 274, RGBHV/RGBS/RGsB computer video with bi-level sync
Sampling: sources with pixel rates up to 170 MHz are sampled 1:1; sources with pixel rates above 170 MHz are filtered and sampled at 170 MHz, including but not limited to: 1920 x 1200p, 2048 x 1080p
Active loop-through output of all input signals
EDID version 1.3 compatible

HDMI Type A

Formats: RGB and YCbCr; Resolutions up to 2048 x 1080p @ 60 Hz per HDMI 1.4 specification and 1920 x 1200p @ 60 Hz
EDID version 1.3 compatible
HDCP version 1.4 compatible
Deep color (30/36 bits)

DisplayPort

Formats: resolutions up to 2560 x 1600 @ 60 Hz (30 bits) per DisplayPort 1.1a specification
HDCP version 1.4 compatible

SD/HD/3G SDI

Formats: SD-SDI per SMPTE 259M-C (NTSC/PAL resolution); HD-SDI per SMPTE 292M, 296M; 3G-SDI per SMPTE 424
Re-clocked loop-through output
Dual link HDSDI per SMPTE 372
Video Outputs SD/HD/3G and BarcoLink SDI

Formats: SD-SDI per SMPTE 259M-C (NTSC/PAL resolution); HD-SDI per SMPTE 292M, 296M; 3G-SDI per SMPTE 424
Dual link HDSDI per SMPTE 372

Composite Video

NTSC/PAL
CVBS on BNC connector

DVI-D

Formats all single-link DVI digital formats up to 165 MHz, per DVI 1.0 specification All dual-link DVI formats up to 330 MHz
EDID version 1.3 compatible
HDCP version 1.4 compatible

VGA HD-15

Formats: NTSC/PAL composite on green, NTSC/PAL Y/C video with bi-level sync on Y only, (Y: Green, C: Red); SD YPbPr with bi-level sync; HD YPbPR with tri-level sync per SMPTE 274; RGBHV/RGBS/RGsB computer video with bi-level sync
EDID version 1.3 compatible

HDMI Type A

Formats: RGB and YCbCr at 4:4:4, YCbCr at 4:2:2, per HDMI 1.4 specification; Resolutions up to 2048 x 1080p @ 60 Hz and 1920 x 1200 @ 60 Hz
EDID version 1.3 compatible
HDCP version 1.4 compatible

DisplayPort

Formats: resolutions up to 2560 x 1600 @ 60 Hz (30 bits) per DisplayPort 1.1a
HDCP version 1.4 compatible
Genlock Analog Ref Input/Loop/Output on BNC connectors; Bi-level and Blackburst at SD and Tri-level at HD or locked to any input
Remote Control USB 1.1
Ethernet RJ-45, 10/100 Mb/s Autosense
Computer, tablet, smartphone, or external Encore or ScreenPRO-II Controller via Ethernet link
Control functions include: source input configuration, output format selection, test pattern selection, transition effect selection and control
Input Power 100 to 240 VAC, 47 to 63 Hz, auto-selecting 2.0 A maximum
Temperature 32 to 104°F (0 to 40°C)
Humidity 0 to 95% non-condensing
Height 1.75″ (4.44 cm) 1 RU Rackmount
Width 17.00″ (43.18 cm) without chassis handles
19.06″ (48.41 cm) with chassis handles attached
Depth 17.09″ (43.40 cm) from front panel to rear panel, 18.51″ (47.01 cm) overall
Weight 15.75 lb (7.14 kg)
