Description

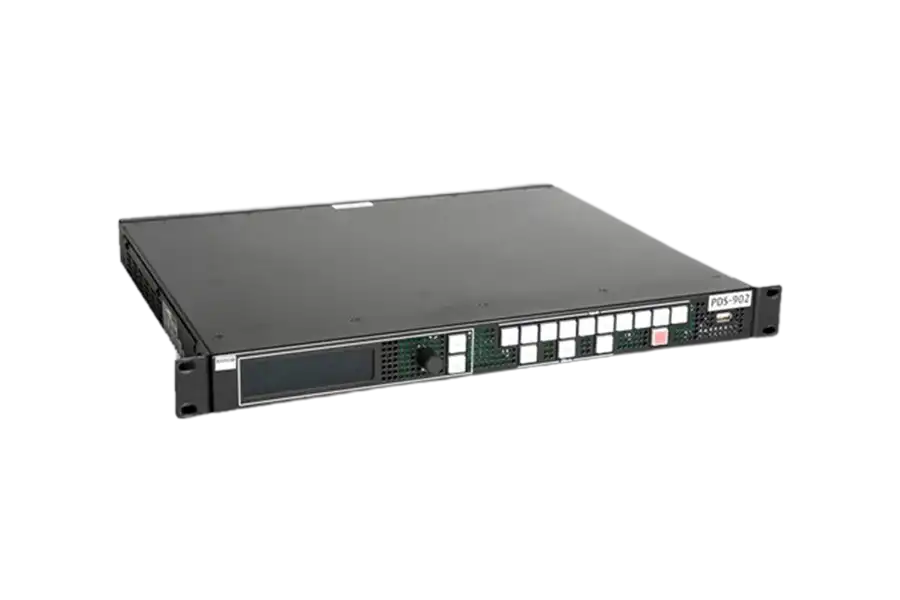

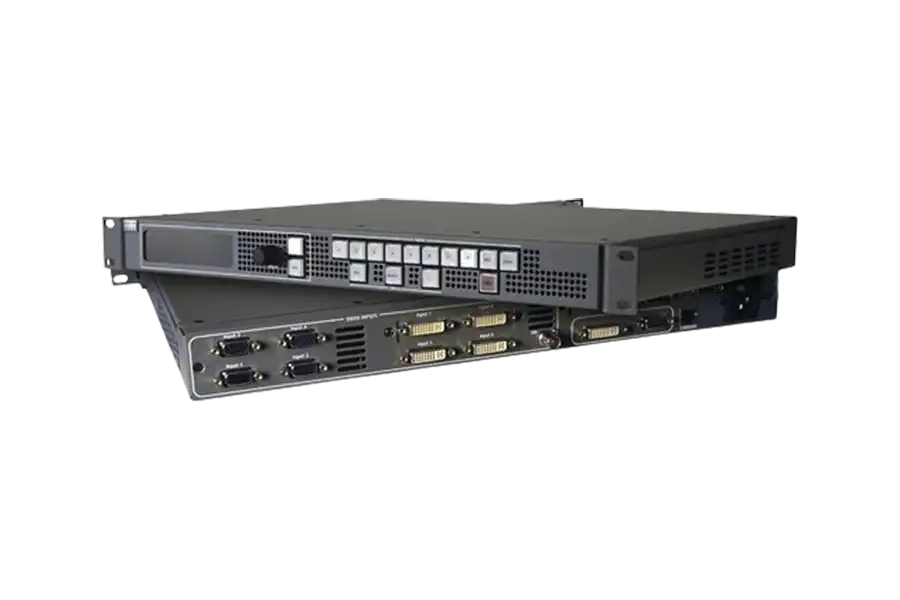

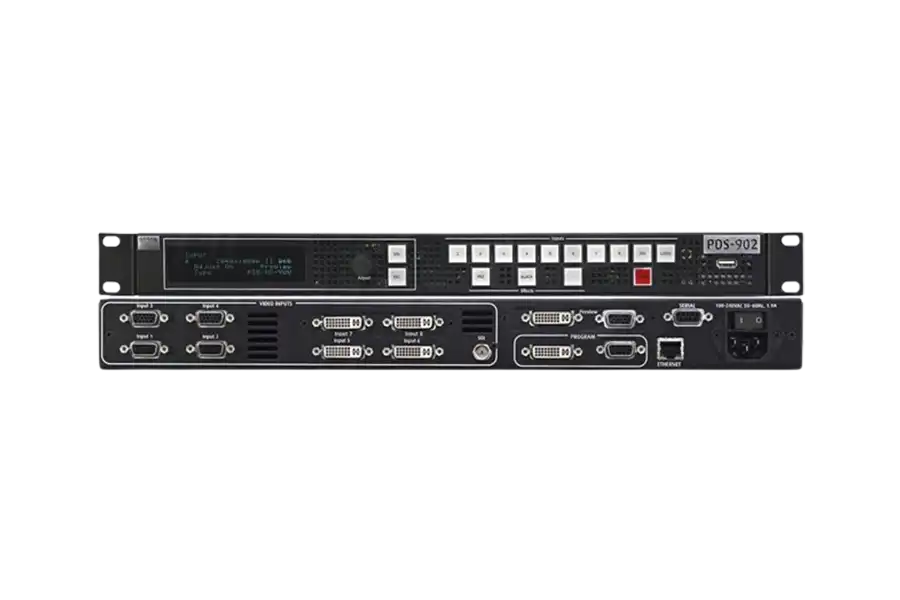

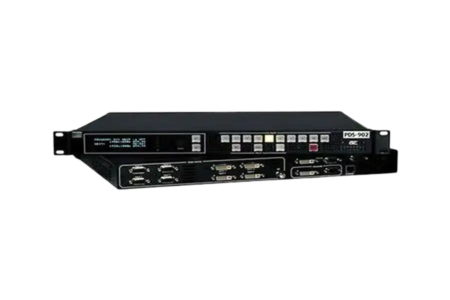

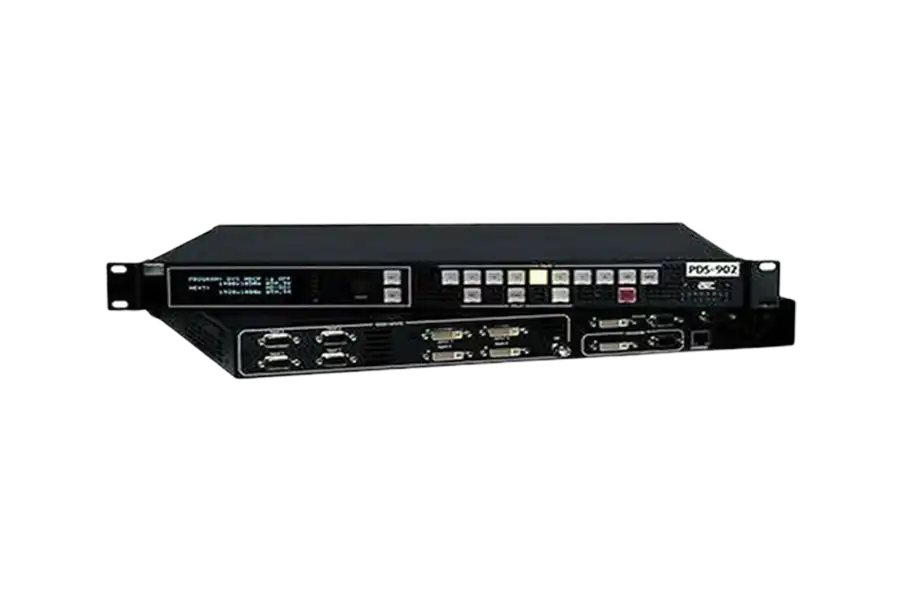

Barco PDS 902 3G AV Switcher provides simultaneous program output via the DVI and analog VGA connectors.
In addition to the program output, the switcher offers a preview output that can be set at different resolutions than the program output.
Users have the option of displaying 1 of 3 signals on the preview output, program, preview, or test pattern.
Straightforward setup and operation, the Barco PDS 902 3G AV Switcher is suited for live events, boardrooms, hotel ballrooms, houses of worship, education and training facilities.
| DVI-I Input |
4 x DVI-I Digital Formats:
All single-link DVI digital formats up to 165 MHz, per DVI 1.0 specification
Analog Formats:
NTSC / PAL composite and Y / C video
SD YPbPR with bi-level sync
HD YPbPr with tri-level sync
RGBHV / RGBS / RGsB computer video with bi-level sync
Analog 1:1 Sampling up to 1920 x 1080 at 60 Hz.
Sources with native pixel rates greater than 150 MHz will be filtered and sampled at 150 MHz. These include but not limited to 1920 x 1080p @ 60 (173.0 MHz), 1920 x 1200 @ 60 (193.25 MHz), and 2048 x 1080p @ 60 (183.75 MHz)
EDID version 1.3 compatible
HDCP version 1.0 compatible |
| VGA |
4 x HD-15 connector
Format:
NTSC / PAL composite with Y / C video
SD YPbPr with bi-level sync
HD YPbPr with tri-level sync per SMPTE 274
RGBHV / RGBS / RGsB computer video with bi-level sync
Analog 1:1 sampling up to 1920 x 1080 @ 60 Hz. Sources with native pixel rates greater than 150 MHz will be filtered and sampled at 150 Mhz. These include but not limited to 1920 x 1080p @ 60 (173.0 MHz), 1920 x 1200 @ 60 (193.25 MHz), and 2048 x 1080p @ 60 (183.75 MHz)
EDID version 1.3 compatible |
| 3G/HD/SD-SDI |
1 x BNC connector
Formats:
SD-SDI per SMPTE 259M-C (NTSC / PAL resolution)
HD-SDI per SMPTE 292M, 296M
3G-SDI per SMTE 424M
BarcoLink |
| DVI-I Output |
Formats:
All single-link DVI digital formats up to 165 MHz, per DVI 1.0 specification
EDID version 1.3 compatible & HDCP version 1.0 compatible |
| VGA |
Formats:
HD YPbPr with tri-level sync per SMPTE 274
RGBHV / RGBS / RGsB computer video with bi-level sync
EDID version 1.3 compatible |
| 3G/HD/SD-SDI |
1 x BNC connector
Formats:
SD-SDI per SMPTE 259M-C (NTSC / PAL resolution)
HD-SDI per SMPTE 292M, 296M
3G-SDI per SMPTE 424M
BarcoLink |
| Control |
1 x Ethernet RJ-45, 10/100 Mbps auto-sense
Computer, tablet, smartphone, or Encore or ScreenPRO-II controller via Ethernet link |
| Input Power |
100 to 240 VAC, 47 to 63 Hz, auto-selecting 2.0 A maximum |
| Humidity |
0 to 95% non-condensing |
| Temperature |
32 to 104°F (0 to 40°C) |
| Rackmountable |
1 RU height |
| Dimensions (W x D x H) |
Without chassis handles: 17.00 x 14.25 x 1.75″ (43.18 x 36.20 x 4.45 cm)
With chassis handles attached: 19.06 x 14.25 x 1.75″ (48.41 x 36.20 x 4.45 cm) |
| Weight |
12.5 lb (5.7 kg) |
