Description

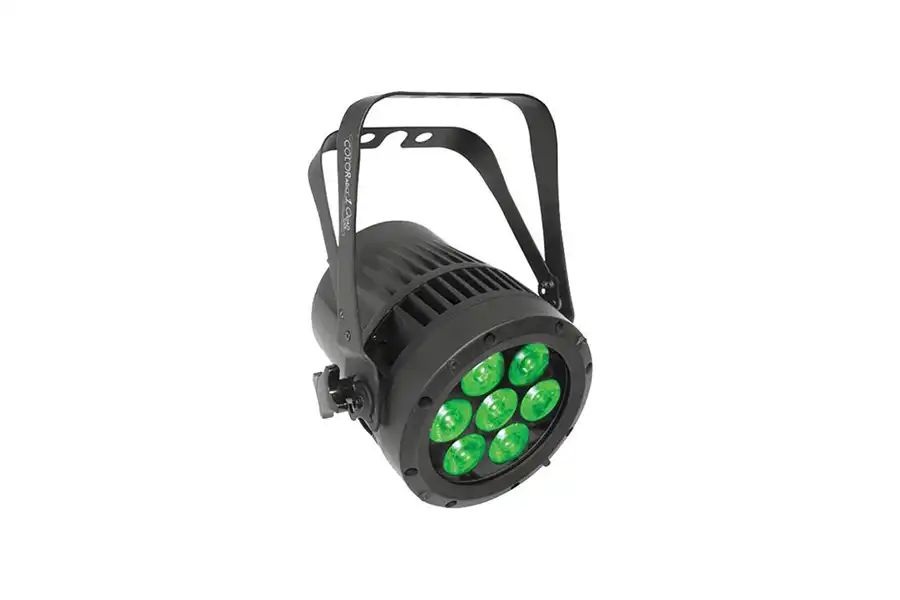

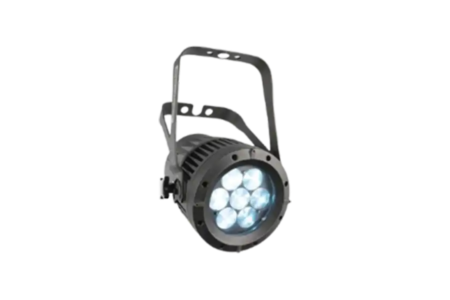

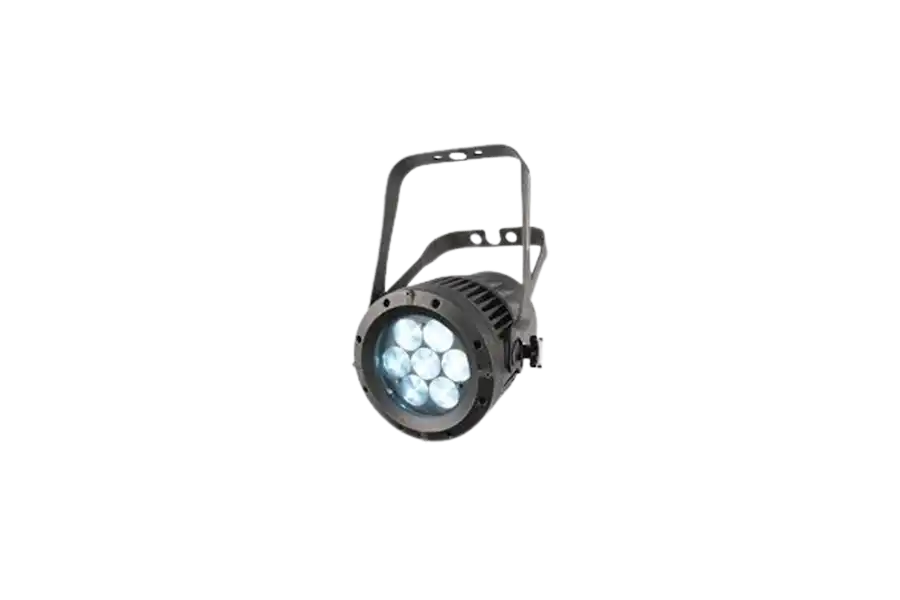

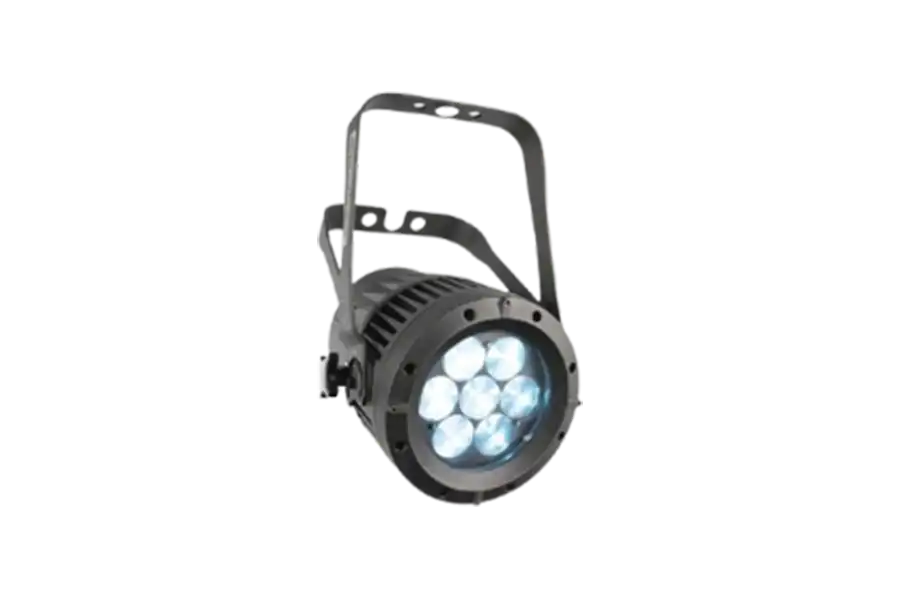

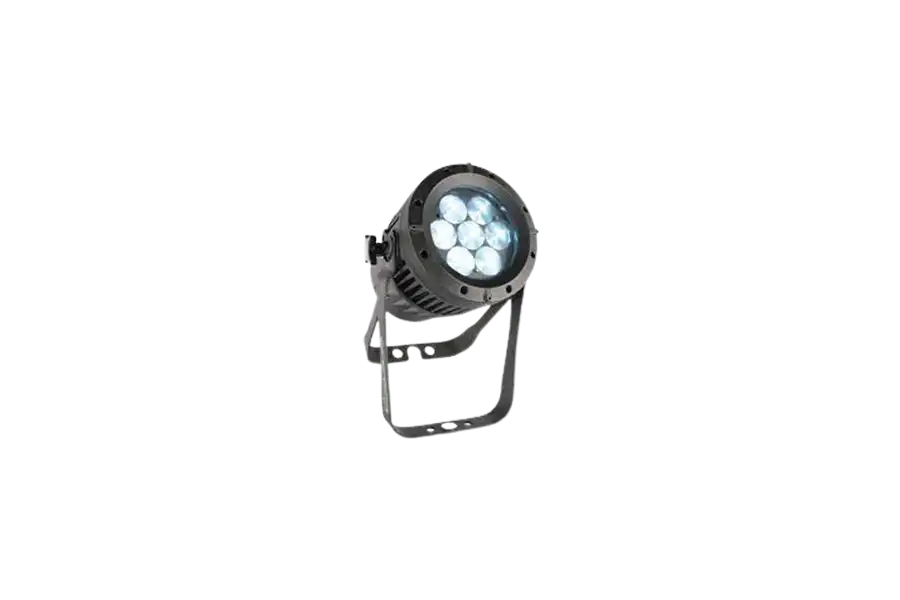

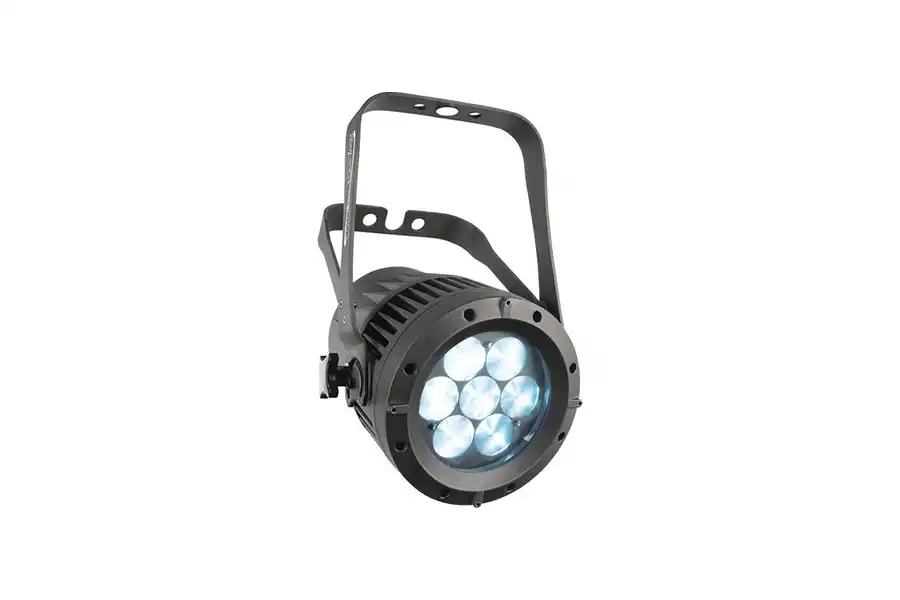

CHAUVET Colorado 1-Quad Tour LED RGBW Light Rental is a compact, portable wash light is ideal for touring. It has a true white spectrum with five selectable dimming curves and can be used in a wide range of colors from bright hues to soft pastels.
Split yoke brackets allow for floor or truss mounting, and Neutrik powerCON connectors make it easy to set up. The unit also features a gel frame holder.
| DMX Channels | 3, 4, 5, 6, 8, 10, 15, or 23 |
| Data Connector | 3-pin and 5-pin XLR |
| Light Source | 7 LEDs (quad-color RGBW) |
| Power Usage | 10 W (2.8 A) |
| Life Expectancy | 50,000 Hours |
| Frame Size | 7.50" (191 mm) |
| Operating Modes | 3-channel: Red, Green, Blue (ARC 1) 3-channel: Hue, Saturation, Value (HSV) 4-channel: Dimmer, Red, Green, Blue (ARC 1+D) 4-channel: Red, Green, Blue, White (ARC 2) 5-channel: Dimmer, Red, Green, Blue, White (ARC 2+D) 6-channel: Dimmer, Red, Green, Blue, White, Strobe (ARC 2+S) 10-channel: Dimmer, Red, Green, Blue, White, Color Macro, Strobe, Auto Programs, Auto Speed Adjust, Dimmer Speed (TOUR) |
| Color | Mixing: RGBW color mixing with or without DMX control Temperature Range: 3,200 to 10,000 K |
| Strobe Rate | 0 to 20 Hz |
| Light Source | 7 (10 W) quad-color LEDs, 50,000 hours Red (692 mA x 2.58 VDC = 1.79 W) Green (687 mA x 3.90 VDC = 2.68 W) Blue (685 mA x 3.69 VDC = 2.53 W) White (681 mA x 3.63 VDC = 2.47 W) |
| Beam Angle | 11.5° |
| Field Angle | 25° |
| Illuminance | 1,520 lux @ 5 m |
| AC Voltage | Range: 100 to 240 V, 50/60 Hz (auto-ranging) |
| Power Consumption | 120 V, 60 Hz: 66 W, 0.6 A (operating) 230 V, 50 Hz: 65 W, 0.3 A (operating) 208 V, 50 Hz: 80 W, 0.69 A (operating) |
| Power Linking | 11 units @ 120 V 19 units @ 208 V 21 units @ 230 V |
| Approvals | CE, MET |
| Environment | IP20, dry location |
| Dimensions | 7.5 x 9.4 x 12.6" (191 x 239 x 319 mm) |
| Weight | 11.5 lb (5.22 kg) |
