Description

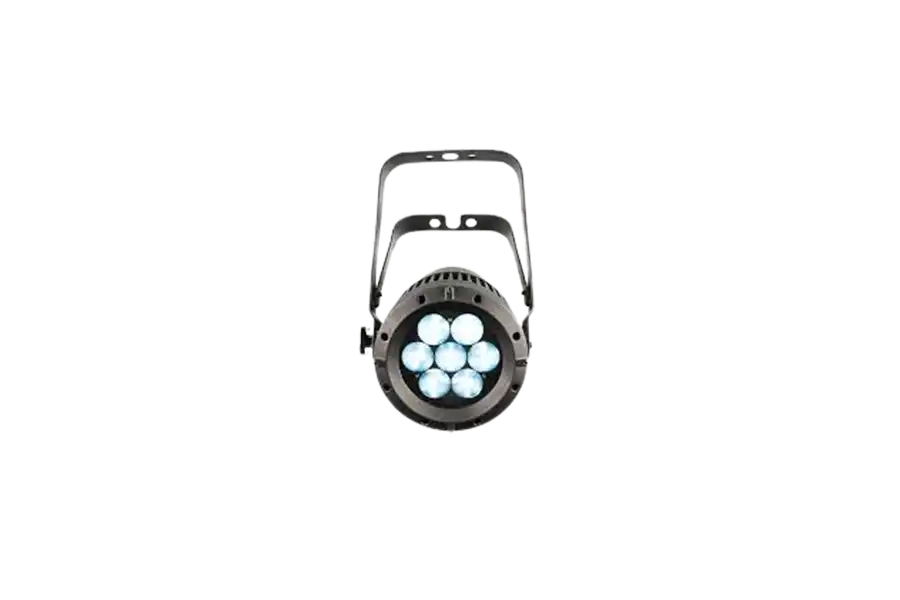

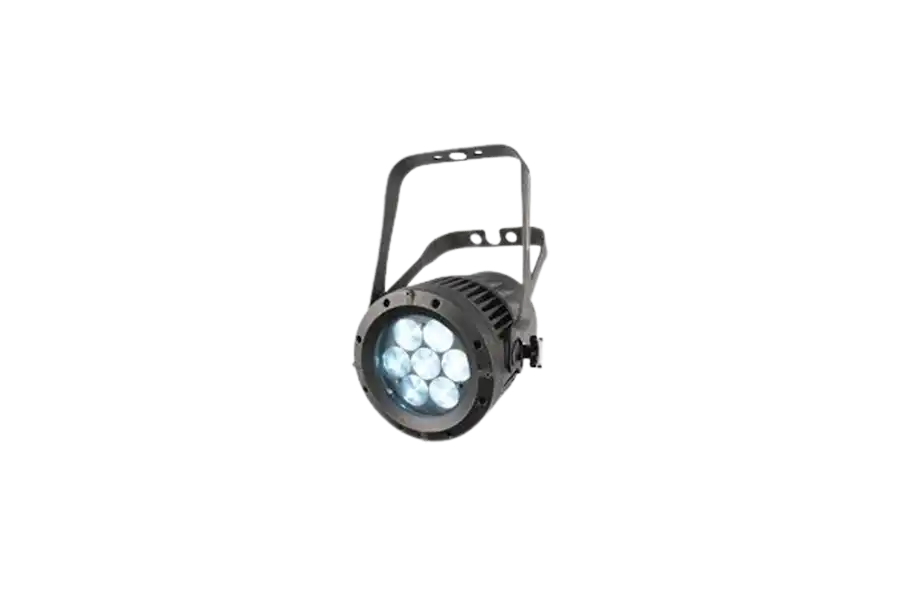

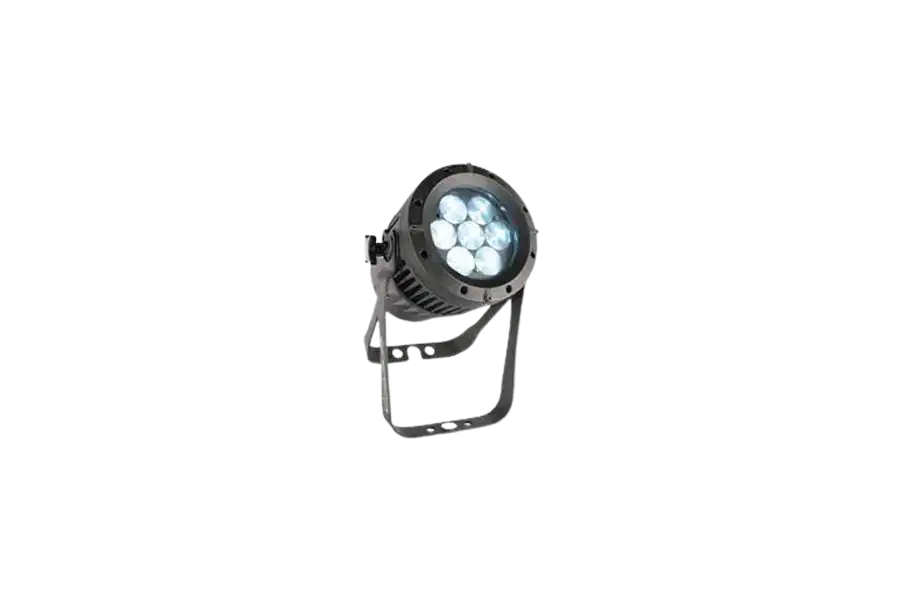

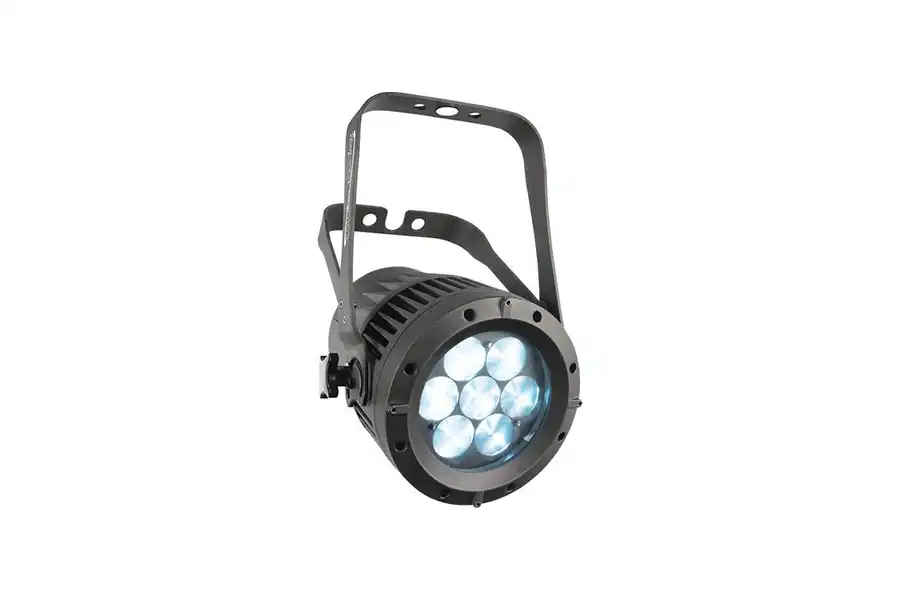

The CHAUVET Colorado 1-Quad Zoom is a compact, tour-ready wash light with a true white spectrum and a vast color palette ranging from vivid hues to soft pastels with 5 selectable dimming curves.
A split yoke bracket allows floor or truss mounting and Neutrik powerCON connectors facilitate a fast and secure set up.
It also includes a built-in gel frame holder.
| DMX Channels | 3, 4, 5, 6, 7, 10, 12, 17 or 25 |
| Data Connector | 3-pin and 5-pin XLR |
| Light Source | 7 Quad-color RGBW LEDs 15 W, (1,000 mA), 50,000 hours life expectancy |
| Color | Standalone RGBW color mixing with or without DMX control Temperature range: 2,800 to 10,000K Color temperature presets |
| Programs | Built-in automated programs Customizable programs Recall custom programs |
| Strobe Rate | 0 to 20 Hz |
| Dimmer | Electronic, 9 dimming modes |
| Illuminance | 3,950 lux @ 16.4′ (5.0 m) at 16° 330 lux @ 16.4′ (5.0 m) at 48° |
| PWM Frequency | 1,200 Hz |
| Beam and Field Angle | Beam angle: 7 to 29° Field angle: 16 to 48° Zoom angle: 16 to 48° |

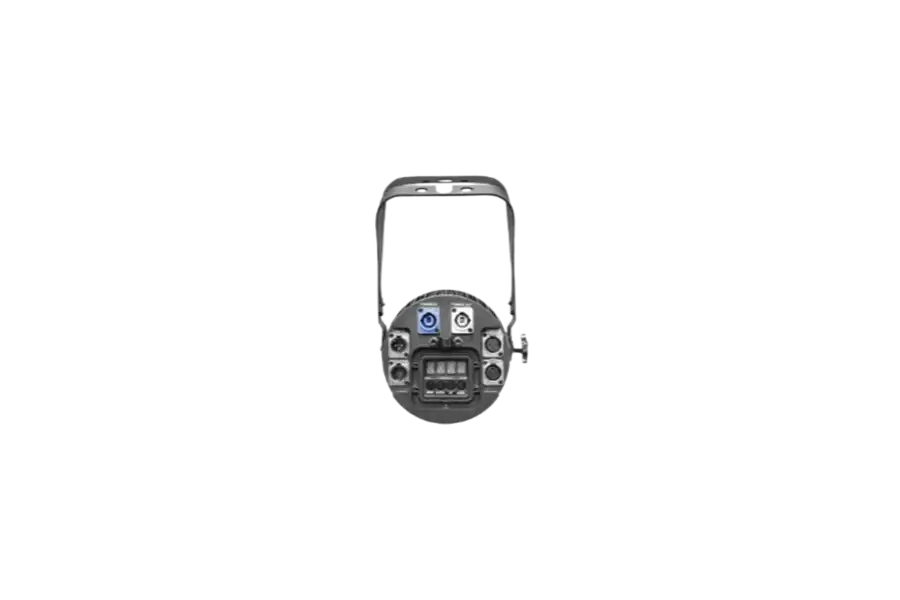

| Connectors | AC power: Edison plug to Neutrik powerCON 5.0′ (1.5 m) cable Input: Neutrik powerCON Output: Neutrik powerCON |
| Power Linking | 12 units @ 120 VAC 21 units @ 208 VAC 23 units @ 230 VAC |
| AC Voltage | 100 to 240 V, 50/60 Hz (auto-ranging) |
| Power and Current | 120 VAC, 60 Hz: 129 W, 1.08 A 208 VAC, 60 Hz: 125 W, 0.63 A 230 VAC, 50 Hz: 124 W, 0.57 A |
| Power Linking | 11 units @ 120 V 19 units @ 208 V 21 units @ 230 V |
| Approvals | CE, MET |
| IP Rating | IP20, dry location |
| Dimensions | Light: 13.14 x 9.25 x 7.48″ (334 x 235 x 190 mm) Accessory holder/gel frame: 7.5″ (191 mm) |
| Weight | 14.8 lb (6.7 kg) |
