Description

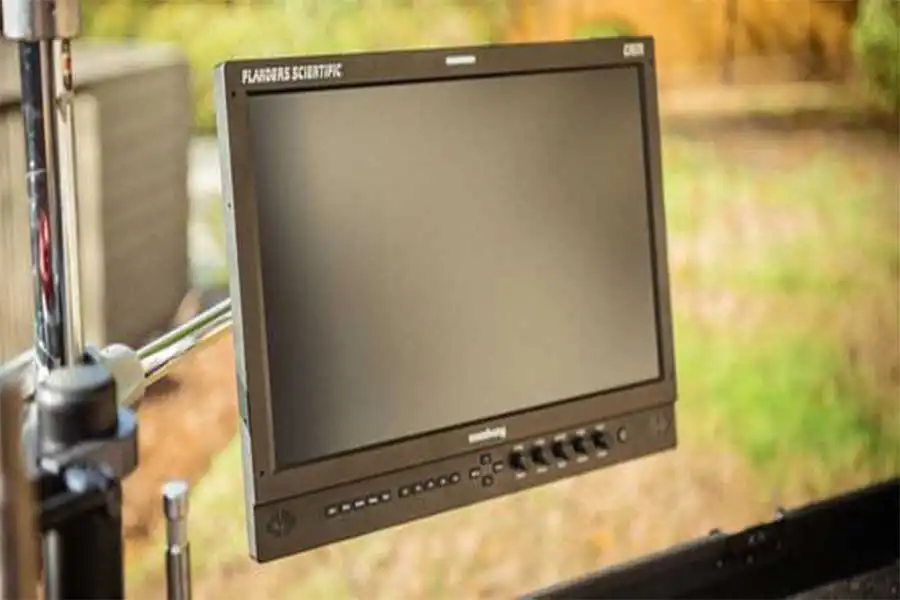

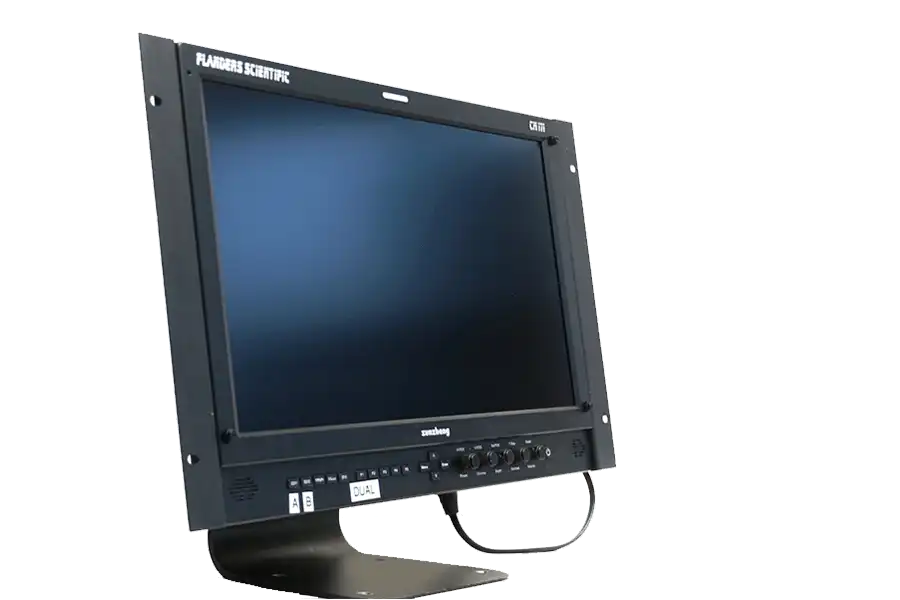

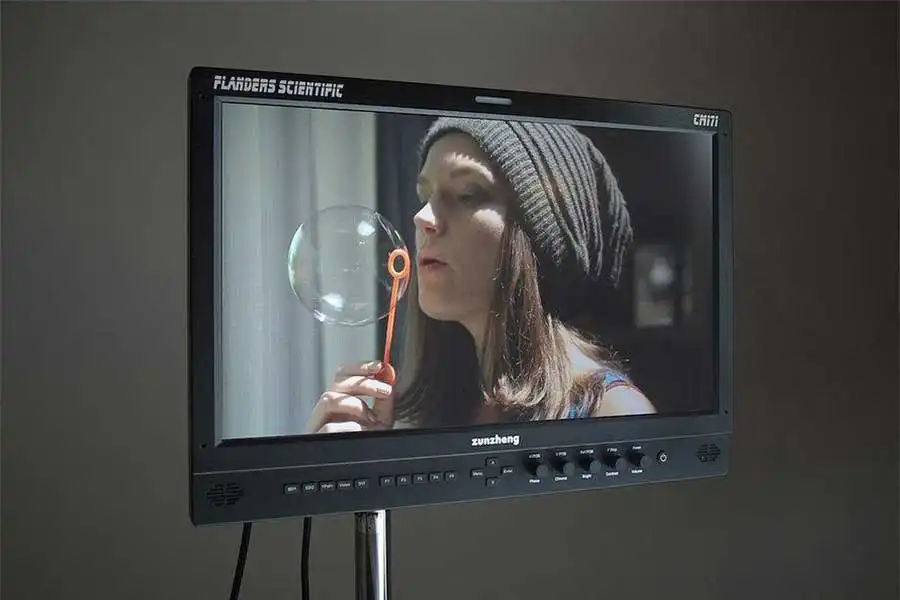

Flanders CM171 Pro Video Production Monitor 17.3in is a lightweight 17.3″ Multi-Format reference monitor with 3G/Dual-Link/HD/SD-SDI, Component, Composite, & DVI-I Inputs.
FLANDERS CM171 SPECS
| Panel Specifications | |
| Screen Size | 17.3″ |
| Resolution | 1920×1080 |
| Bit Depth (Color) | True 10bit (1.073 Billion Colors) |
| Contrast Ratio | 1000:1 |
| Max Native Color Gamut | |
| Backlight | RGB LED |
| Pixel Efficiency | 99.999% |
| Max Luminance | 250nit |
| Viewing Angle | 178° |

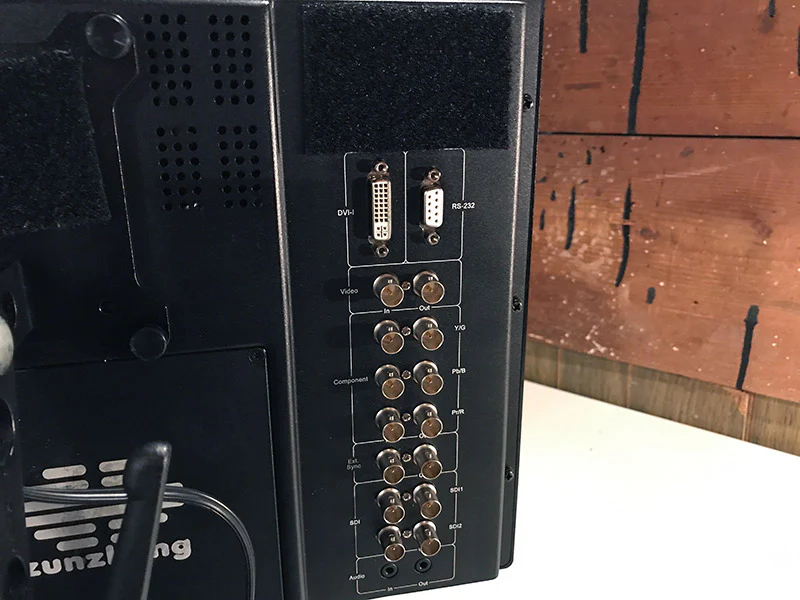

| Inputs | |
| 1 x DVI-I | DVI-I (Analog/Digital) |
| 2 x BNC | 3Gbps/Dual Link/HD/SD-SDI |
| 1 x BNC | Composite |
| 3 x BNC | Component (YPbPr/RGB) |
| Outputs | |
| 2 x BNC | 3Gbps/Dual Link/HD/SD-SDI |
| 1 x BNC | Composite |
| 3 x BNC | Component (YPbPr/RGB) |
| Supported SDI Formats | |
| ITU-R BT.656 (PAL) | 576i (50) |
| SMPTE-125M | 480i (59.94) |
| SMPTE-274M | 1080i (60/59.94/50) 1080p (30/29.97/25/24/24PsF/23.98/23.98PsF) |
| SMPTE-296M | 720p (60/59.94/50/30/29/25/24/23.98) |
| 2K | 2048×1080 (30p/30PsF/29.97p/29.97PsF/25p/25PsF/24p/24PsF/23.98p/23.98PsF) |
| SMPTE-372M | 1080p (50/59.94/60) 4:2:2 YCbCr, RGB 1080i (29.97/25/24/23.98) 4:4:4 YCbCr, RGB 1080p (30/29.97/25/24/23.98) 4:4:4 YCbCr, RGB 720p (60/59.94/50) 4:4:4 YCbCr, RGB |
| SMPTE-425M-AB – Level A & Level B supported – Level B supports 2 x SMPTE 292M image format mapping 372M image format mapping – RGB, YCbCr, & XYZ supported | 12 & 10bit 4:2:2 1920x1080p (60/59.94/50) 4:4:4 1280x720p (60/59.94/50/30/29.97/25/24/23.98) 12 & 10bit 4:4:4 1920x1080i (60/59.94/50) 12 & 10bit 4:4:4 1920x1080p (30/29.97/25/24/24PsF/23.98/23.98PsF) 12 & 10bit 2k (2048×1080)(30p/30PsF/29.97p/29.97PsF/25p/25PsF/24p/24PsF/23.98p/23.98PsF) *XYZ mapped to Selected Color Gamut on Color Management Menu |
| Supported DVI-I Formats | |
| DVI-Analog & DVI-Digital | VGA (640×480), NTSC (720×480), SVGA (800×600), XGA (1024×768), SXGA (1280×1024) |
| DVI Digital Only | 1280×720, 1440×900, 1920×1080 |
| Audio | |
| Audio Disembedding | Yes |
| Audio Level Meters | Yes |
| Internal Speakers | 2 |
| Audio In (Mini-Jack) | 1 |
| Audio Out (Mini-Jack) | 1 |
| Features | |
| Rack Mount Kit | Optional |
| Desktop Stand | Standard |
| External Mounting Points | 100mm VESA |
| VESA to Light Stand Mount | Optional |
| Carrying Case with Integrated Hood | FSI Solutions CH17 |
| Clear Protective Cover | Optional |
| On-Screen Scopes | Yes |
| Measurement Function | Yes |
| Timecode Display (SD/HD-SDI) | LTC, VITC 1, VITC 2 |
| Color Fidelity Engine | Yes |
| 1:1 Pixel Mapping | Yes |
| Blue Only & Mono Mode | Yes |
| Side by Side Monitoring | Yes |
| 3D LUT Color Space Selection | SMPTE C/EBU/REC709/REC2020 Emulation/DCI-P3/USER |
| Color Temperature Select | 3200K, 5000K, 5600K, 6500K, 9300K |
| Gamma Selection | 1.0 / 1.8 / 2.0 / 2.2 / 2.35 / 2.4 / 2.6 / 2.8 |
| Power | |
| AC Input | IEC / C14 |
| DC Input | 4 PIN XLR |
| Battery Plate | Optional |
| Power Requirement | 100~240 VAC / 12 VDC |
| DC Power Consumption (Appx.) | 28 Watts |
| Physical Characteristics | |
| Weight (without stand) | 6.4 lbs (2.9 kg) |
| Weight with Basic Desktop Stand | 8.8 lbs (4.0 kg) |
| Weight in Carrying Case with Hood | 14.5 lbs (6.6 kg) |
| Chassis | Aluminum Frame |
