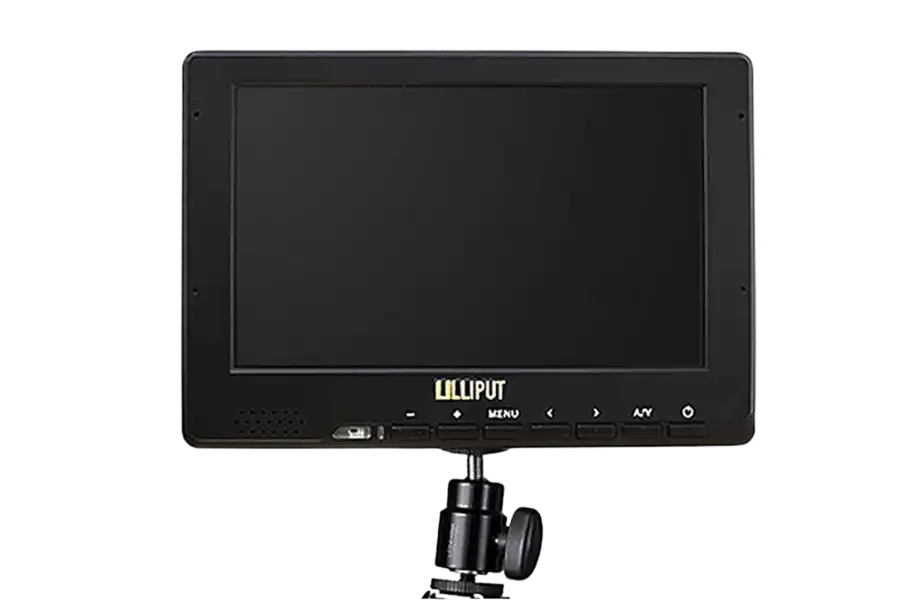

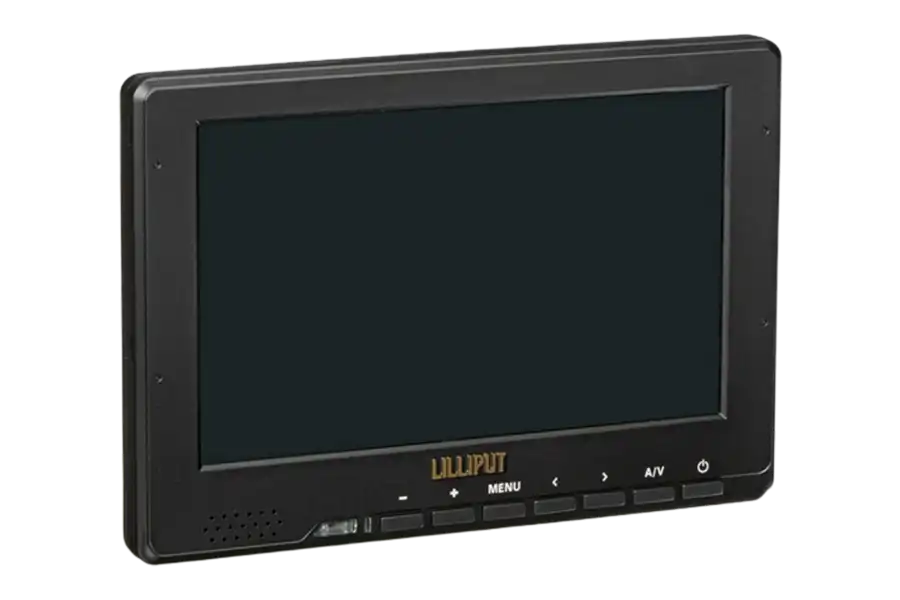

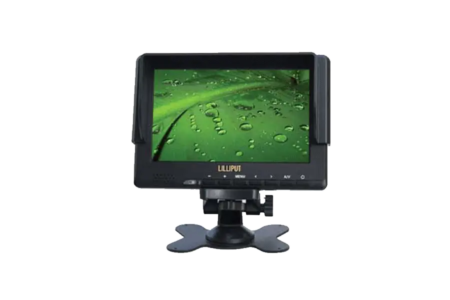

Lilliput 667/S 7″ 3G-SDI, HDMI Preview Monitor



  • 7″ camera-top monitor with 16:9 aspect ratio
  • 500:1 contrast ratio produces vivid and rich colours
  • Enhanced 450 cd/m2 back-light produces a crystal clear picture and shows colours vividly
  • IPS panel offers 130° horizontal and 120° vertical wide viewing angles
  • Includes two battery plates compatible with Canon LP-E6 and Sony F-970 batteries
  • Shoe mount adopter included


Lilliput 667/S 7″ 3G-SDI, HDMI Preview Monitor provides an 800×480 pixel display for checking your image’s focus and exposure.

The display’s 16:9 aspect ratio fits most signals output from HD camcorders without letterboxing or pillarboxing the image, ensuring the full-screen resolution is used.

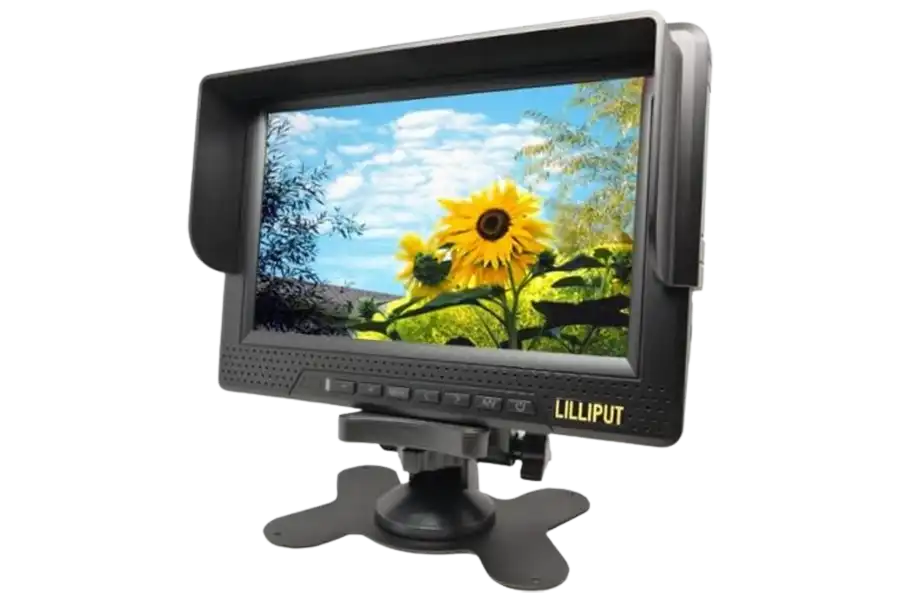

For wide viewing angles and accurate colors, this monitor features an IPS display with an anti-glare finish and a 500:1 contrast ratio for punchy images. A sun hood is included for preventing excess glare when outdoors.

For power, the included Canon or Sony battery plates can be used for portability.

LCD Display
LCD Size 7″ (18 cm)
Display Resolution 800 x 480
Active Area 152.4 (W) x 91.44 (H) mm
Dot Pitch 0.0635 (W) x 0.1905 (H) mm
Aspect Ratio 16:9
Brightness 400 cd/m2
Contrast Ratio 500:1
Backlight White LED
Surface Treatment Anti-glare
Viewing Angle 70/70° (left/right) and 50/70° (up/down)
Interface Video, Audio, YPbPr, HDMI, XLR DC power, DC power
Input Connector Video, Audio, YPbPr, HDMI
Input Format Support SDI Format Support:

SMPTE-425M-A: 1080p (60/59.94/50) 1080i (60/59.94/50)
SMPTE-274M: 1080i (60/59.94/50)
SMPTE-296M: 720p (60/59.94/50)
SMPTE-125M: 480i (60/59.94)
ITU-R BT.656: 576i (50)

Control Basic: -Volume down,+ Volume up, menu, 2 x selection key, switch key, power

Advanced: Brightness, Contrast, Saturation, Tint, OSD H-Position, OSD V-Position, Reset, Color Temperature, Red, Green, Blue, Language, Miscellaneous, Exit, Image Flip, Aspect Ratio, Sharpness, OSD duration.

Speaker Built in, 1 W
Power Input 12 VDC (XLR DC connection)
Power Consumption Max: 8 W
Environmental Operating: -4 to 140°F (-20 to 60°C)
Storage: -22 to 158°F (-30 to 70°C)

Operating at High Temperature and High Humidity: 140° F (60°C) / 90% RH max, 240 hrs

Dimensions (L x W x D) 7.1 x 5.1 x 1.2″ / 188 x 131 x 33 mm
Weight 2.7 lb / 1.2 kg
