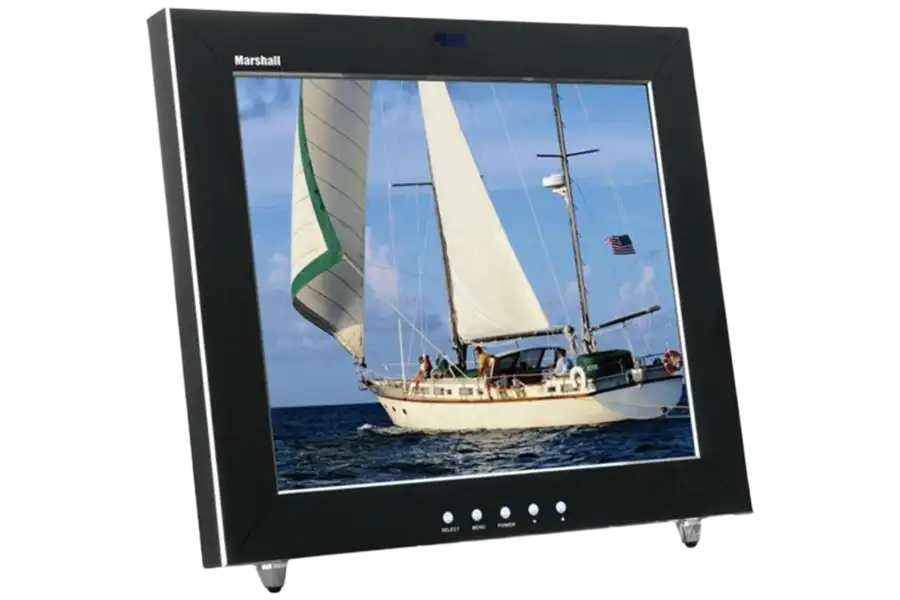

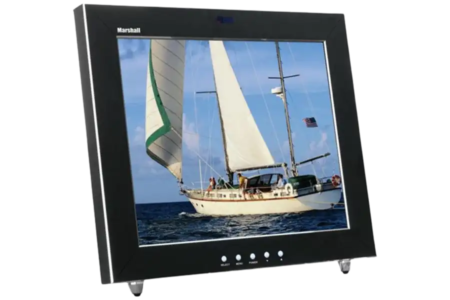

Marshall V-LCD17H-2HD 17″ Production Monitor



  • Thin and robust 17″ display with a 16:10 aspect ratio
  • Equipped with 2 HD-SDI ins/1 out, a tally in, and a desktop stand
  • 1400 x 900 resolution, 600:1 contrast, and 250 nits of brightness
  • User-definable buttons are available for programming the monitor’s functions into
  • Functions include False Color, RGB Gain/Bias Adjust
  • Pixel-to-Pixel, Blue Gun, and Hard Tally

The price shown is an average, prices vary by location.


Marshall V-LCD17H-2HD 17″ Production Monitor with Dual HD-SDI is a multi-featured desktop display intended for low-budget broadcast productions.

It is designed thin and robust and is equipped with two HD-SDI inputs, one such output, and a tally input.

Marshall Electronics V-LCD17H specs

Connections Two HD-SDI inputs / one HD-SDI output (cold swap only)
15-pin tally input
Viewing Area 17″ diagonally (43 cm)
Resolution 1400 x 900
Aspect Ratio 16:10
Pixel Pitch .255 x .255 mm
Brightness 250 cd/m²
Contrast Ratio 600:1
Dimensions 18.9 x 10.45 x 1.4″ (48 x 26.5 x 3.5 cm)
Weight 8.8 lbs (4 kg)
