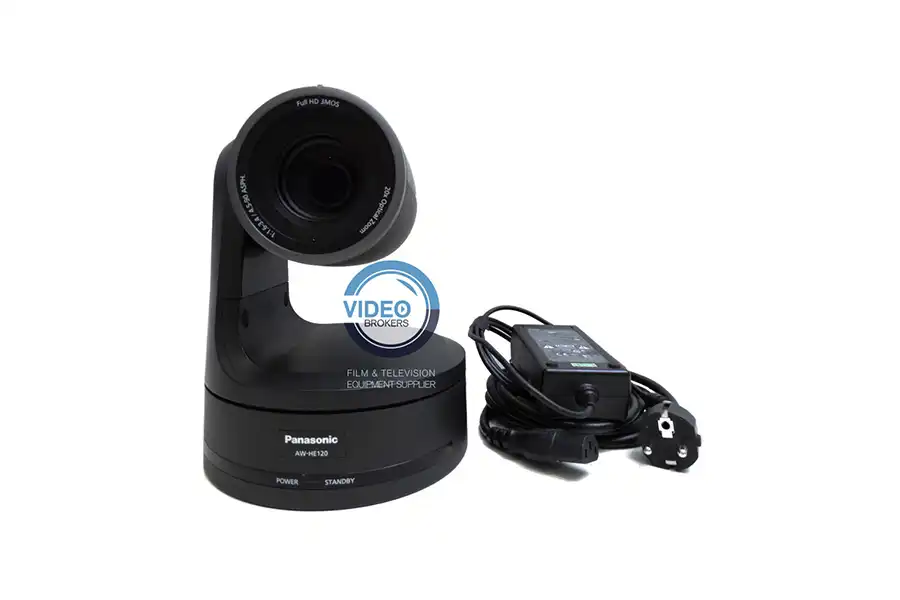

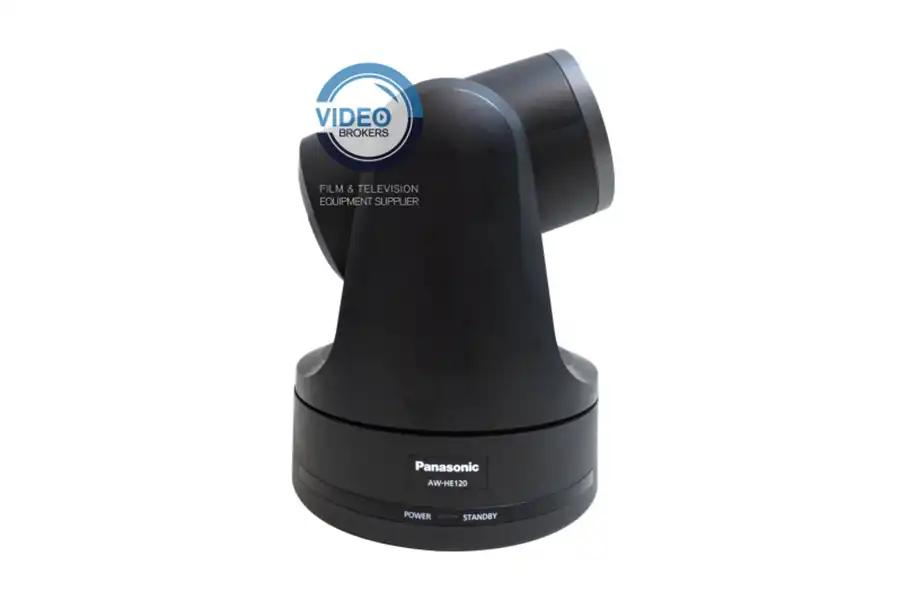

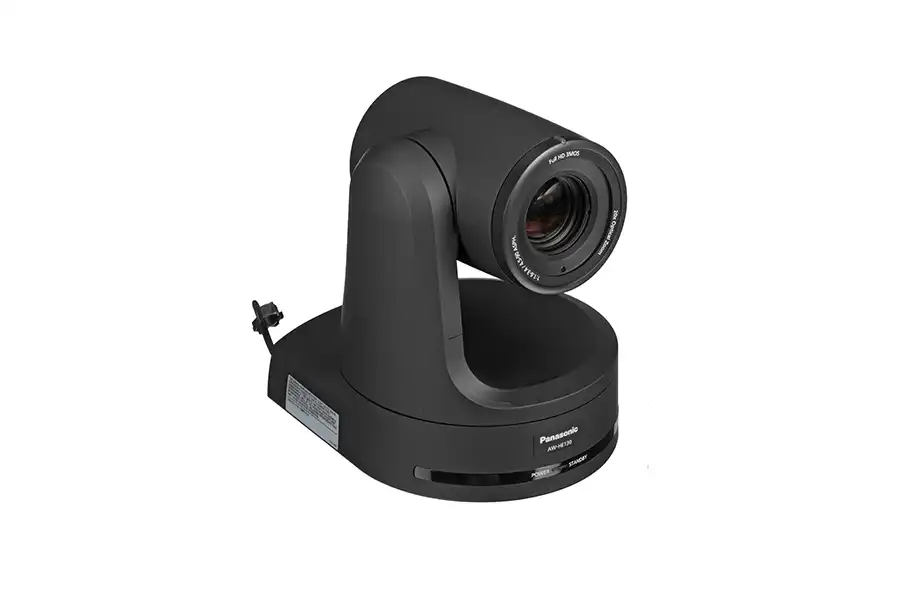

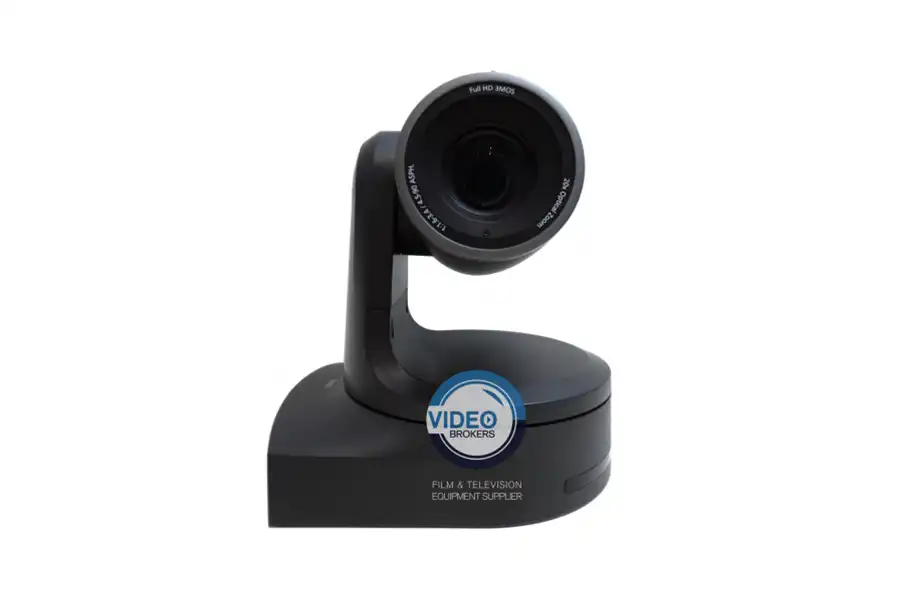

Panasonic AW-HE120K HD Pan / Tilt / Zoom Camera



  • Integrated pan/tilt/zoom camera
  • Uses 1/3 type 2.2-megapixel U.L.T.
  • 3 MOS images
  • A fast 20X zoom lens
  • Produce full-HD video in a wide range of shooting conditions.

The price shown is an average, prices vary by location.

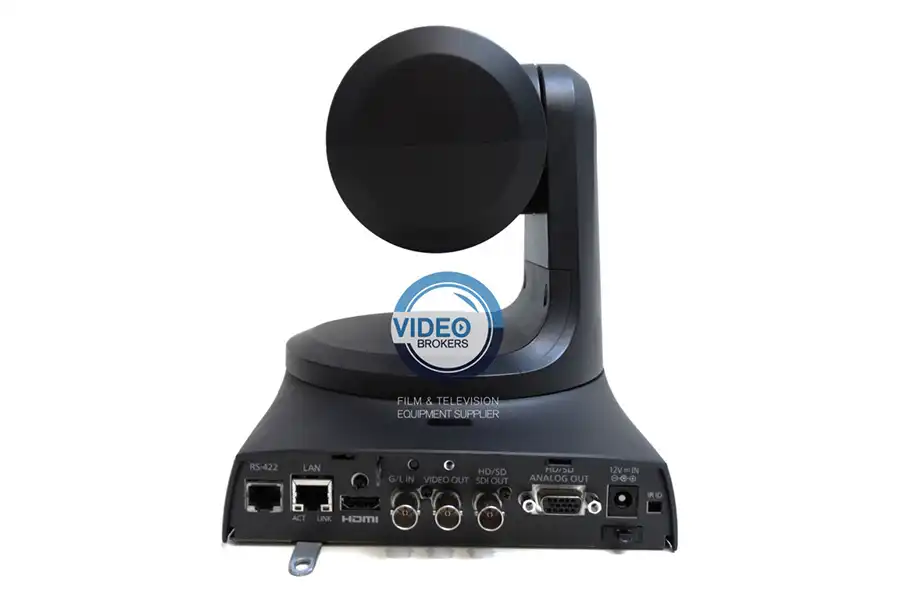

Panasonic AW-HE120K HD supports RS-422 serial control and IP control with dedicated RJ-45 connectors.

It is compatible with current Panasonic controllers such as the AW-RP655 and AW-HS50, along with many serial and IP control systems from Crestron, AMX and other vendors.

Panasonic AW-HE120K HD supports both direct and Web-based IP remote control, so the camera can be securely operated and adjusted remotely from an ordinary browser-equipped PC anywhere in the world.

Manufacturer Specs

Camera Image Sensors: 1/3 type progressive 2.2 megapixel, 3MOS
Synchronization System: Internal/External synchronization (BBS/3SY)

Type: Motorized 20x zoom
F1.6 to F3.4 (f=4.5 mm to 90 mm, 35 mm equivalent: 32.13 mm to 6452.5 mm)
Focus Distance
Entire zooming range: 800 mm
Wide end: 400 mm

Output Formats

1080/59.94p*1, 1080/59.94i, 720/59.94p, 480/59.94p*1, 480/59.94i, 1080/50p*1, 1080/50i, 720/50p, 576/50p*1, 576/50i
*Note: When 1080/59.94p and 576/50p are selected, output signals on SDI and analog component are 1080/59.94i, 1080/50i, 480/59.94i and 576/50i respectively.

Pan-tilt Mechanism
Installation Methods
Stand-alone: Desktop
Hanging: suspended*
*To ensure safety, AW-HE120 must be secured by using the mount bracket provided.

Pan/Tilt Operation
Speed: Max 60°/sec.
Pan Range: &plusm;175°
Tilting Range*3: -30° to 210°
*Depending on pan or tilt position, external glare may cause AW-HE120 to be reflected in the image.
Quietness: NC35
Preset Positions: 100
I/F: IP/RS422

Requirements: DC 12V &plusm;10% (AC adaptor provided)
Consumption: 1.75 A


  • Dimensions: 7.1″W x 9.0″”H x 8.7″”D (180 x 228 x220 mm) excluding protrusions, cable cover, direct ceiling mount brackets
  • Weight: Approx. 6.6 lbs (3.0 kg) including mounting brackets
