Description
Includes:
- Broadcast Kit
- CCU
- Tripod

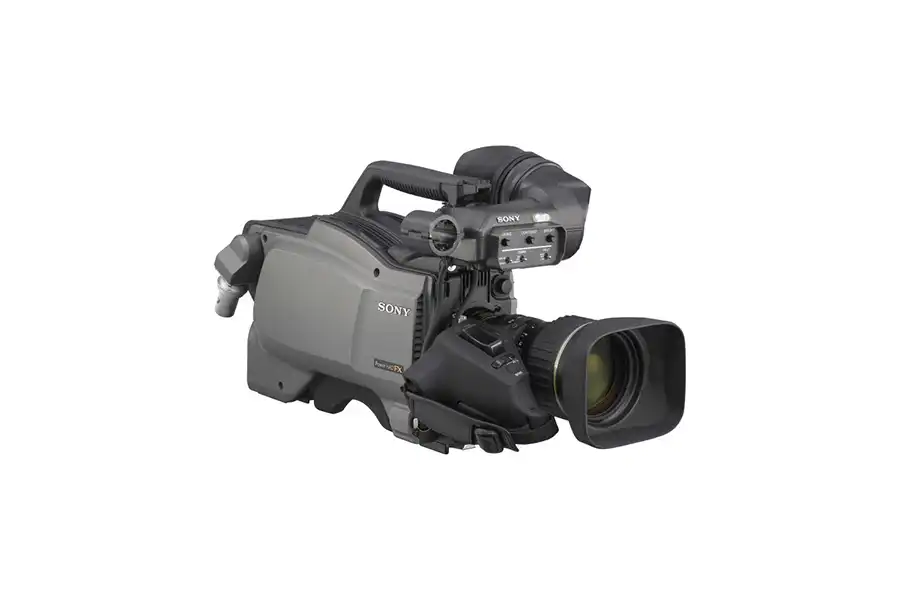

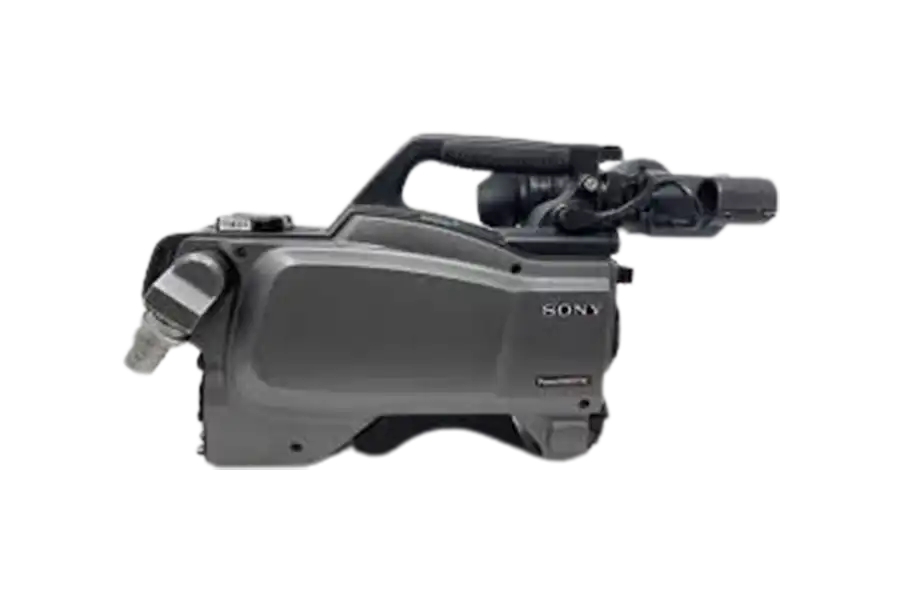

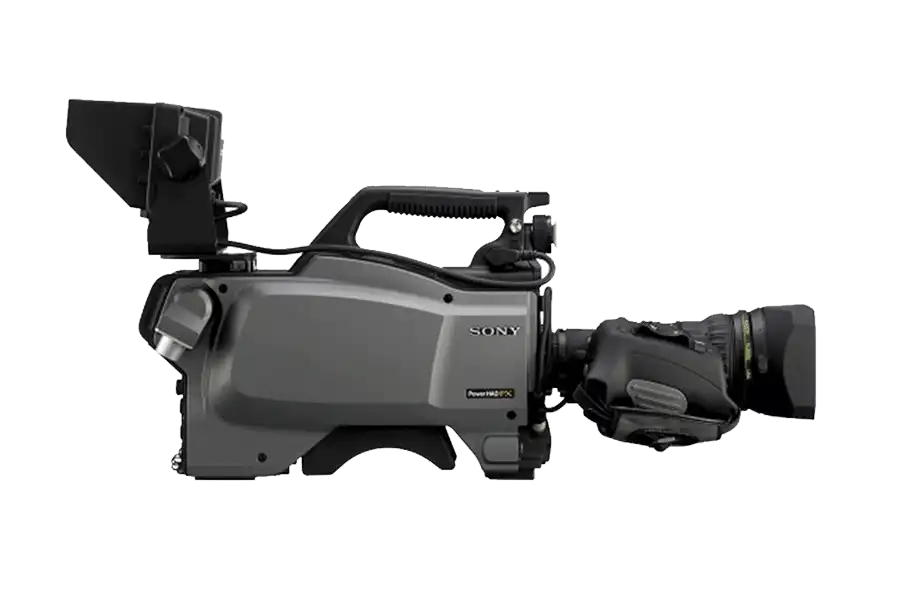

Along with the highly thick 1.5 RU HXCU-100 Camera Control Unit and a distant control panel from Sony, the HXC-100 camera offers a fairly simple system. With a variety of favourable operates packed into the camera, that is its Focus Help function, the HXC-100 supplies absolute user-friendliness.
- Simple System Configuration
- 2.2-megapixel Power HAD FX CCD for high sensitivity
- Digital triax operation
- 14-bit Analog to Digital conversion
- Robust design
- Newly developed Focus Assist Functions
Specifications
| CAMERA | |
|---|---|
| Pickup Device | 3-CCD 2/3-inch type 16:9 |
| Effective Resolution | 1920 x 1080 |
| Spectrum System | F1.4 prism system |
| Built-In Filters | 1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND, CC Electrical |
| Servo Filter Control | Yes |
| Sensitivity (1080/50i mode) | F11 at 2000 lx (3200K, 89.9% reflectance) |
| S/N Ration | HD : -55 dB (1080i) and SD : -65 dB at 59.94 Hz, -63 dB at 50 Hz |
| Resolution (Horizontal) | HD : 1000 TV lines and SD : 900 TV lines |
| Dynamic Range | 600% |
| Registration | Within 0.02% (all zones, without lens) |
| Shutter Speed Selection | 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 s (1080/60i mode) 1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000 s (1080/50i mode) |
| Modulation Depth | HD : 45% at 27.5 MHz (1080i) and SD : 90% at 5 MHz |
| Lens Mount | Sony bayonet mount |
| INPUT / OUTPUT CONNECTORS | |
|---|---|
| Audio In (CH-1) | XLR-3-31 type (1, female), mic or line selectable |
| Audio In (CH-2) | XLR-3-31 type (1, female), AES/EBU or mic or line selectable |
| Mic In (Front) | XLR-3-31 type (1, female) |
| Return Control | 6-pin (1) |
| Genlock / Return In | Share w/ Prompter output |
| DC In | XLR-4-pin type (1) |
| Test Out | BNC type (1), 1.0 Vp-p, 75 ohm |
| HD SDI Out | BNC type (1) HD-SDI or SD-SDI selectable |
| Earphone Out | Mini-jack (1), 8 ohm |
| DC Out | 4-pin (1), 10.5 to 17 V, max. 0.5 A |
| CCU | Triax connector |
| Lens | 12-pin |
| Viewfinder | 20-pin |
| Remote | 8-pin |
| Prompter | BNC type (1), 1.0 Vp-p, 75 ohm |
| Tracker | 10-pin: Tracker R/T, R/G Tally, unregulated 12 V |
| Intercom | XLR-5-pin (1, female) |
| GENERAL | |
|---|---|
| Mass | Approx. 4.5 kg (9 lb 14 oz, without VF and lens) |
| Operating Temperature | -20 to +45 °C (-4 to +113 °F) |
| Supplied Accessories | Operation manual (1), Lens cap (1), Label for assignable switch (1) |
